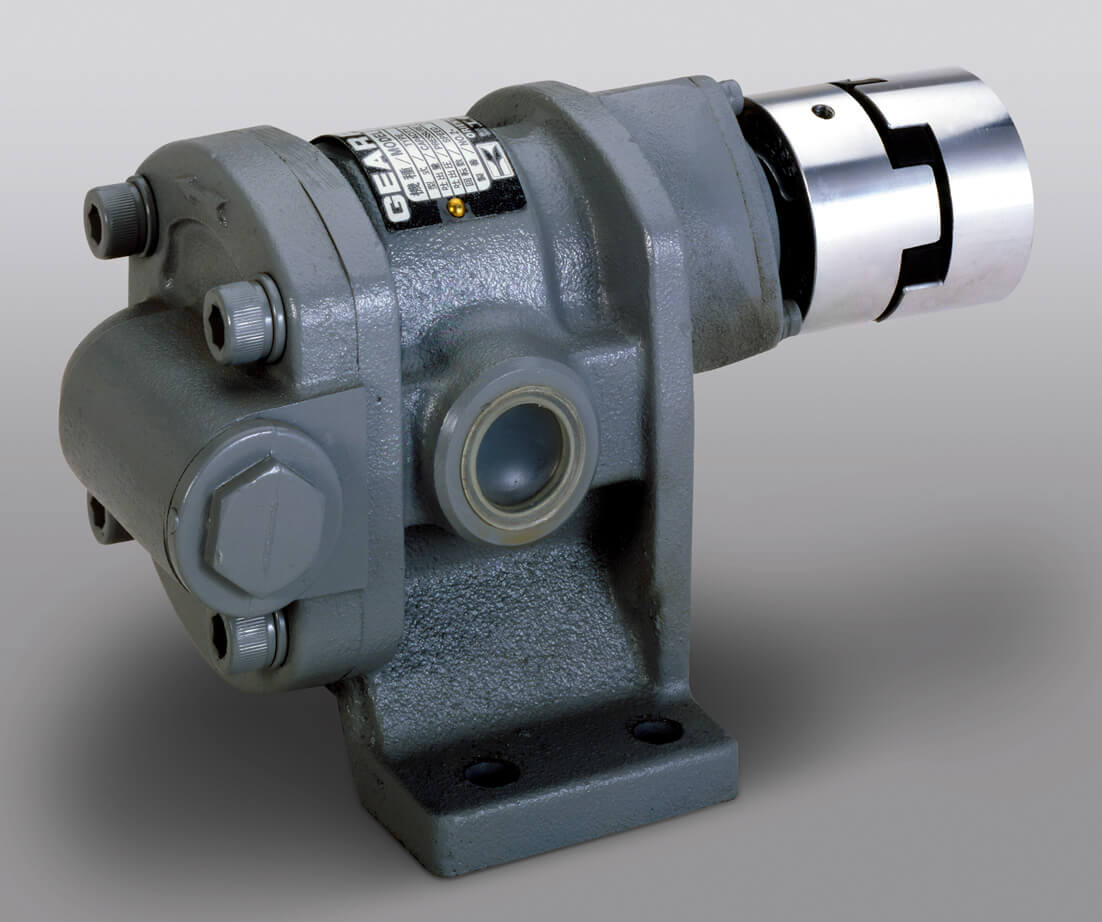

Oil pump Gear pump GL-50-5

“GEAR PUMP” GL series for low viscosity oils. The safety bypass function protects the pump.Application: Kerosene Machine oil Heavy oil Light oilPerformance curve №11:Documentation:Customer catalog GLTechnical information:MODELGL-50-5Connection diameter50 mm (2″) Power3.7 kWPole6 PMax. Print0.5 MPa (5 kgf/cm2)Delivery volume 60 Hz (1800 rpm)200 L/min (52 USG/min)Power volume 50 Hz (1500 rpm)165 L/min (43 USG/min)Housing materialFCClutchJISPump shaft diameterφ 22 mmNet weight26 kg (57 lbs)Gross weight27 kg (60 lbs)Dimensions L×W×H (mm)318 × 258 × 220Packing unit1
