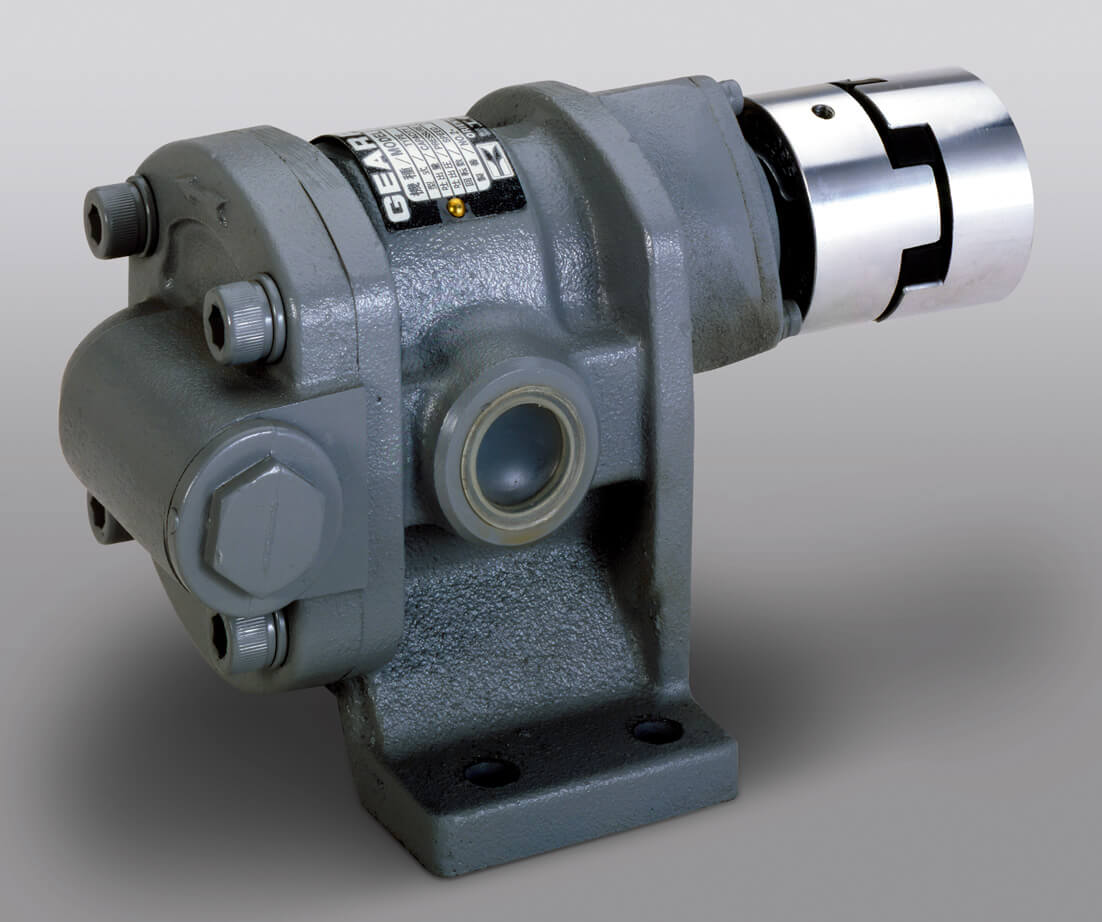

Oil pump Gear pump GL-25

The GEAR PUMP GL-25 oil pump has the same accuracy as a high-performance hydraulic pump. Best suited for forced feed in marine engines and engine lubrication.“GEAR PUMPS” Suitable for oil with low viscosity. This HEAVY DUTY Koshin product has a simple gear mechanism combined with low weight, compact design and high reliability. You can use your own mechanical coaxial drive from the combustion engine or an electric motor with 1500-1800 rpm and an output of 2.2 kW. The housing of the KOSHIN pump of the GL series is equipped with a safety bypass function.Application: Kerosene Machine oil Heavy oil Light oil</aPerformance curve №6:Documentation:Customer catalog GLTechnical information:MODELGL-25-10Connection diameter25 mm (1″) Power2.2 kWPole4 PMax. Print1 MPa (10 kgf/cm2)Delivery volume 60 Hz (1800 rpm)55 L/min (14 USG/min)Power volume 50 Hz (1500 rpm)46 L/min (12 USG/min)Housing materialADCClutchJISPump shaft diameterφ 18 mmNet weight8 kg (16 lbs)Gross weight8.5 kg (19 lbs)Dimensions L×W×H (mm)307 × 150 × 155Packing unit1
