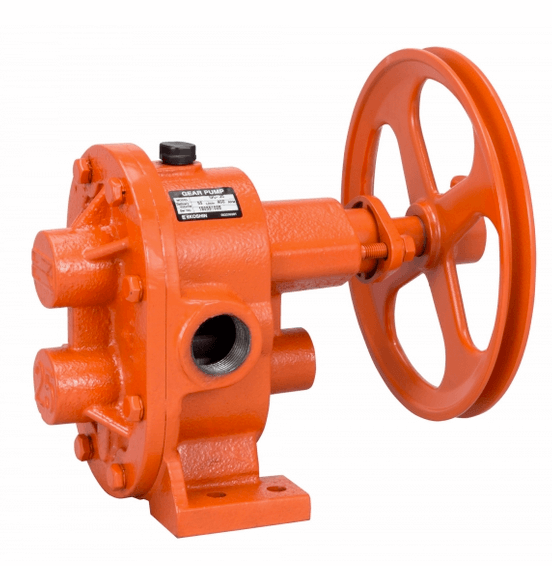

Oil pump Gear pump GB-25

Features:“GEAR PUMPS” Suitable for water, oil and various liquids. One of the first oil pumps in the ORIENTAL KOSHIN pump range, which has been in production for more than 70 years. This HEAVY DUTY Koshin product has a simple gear mechanism combined with a lightweight, compact design and high reliability in aggressive, sticky and thick liquids. You can use your own mechanical belt drive from the combustion engine or an electric motor with 200-600 rpm. The housing of the KOSHIN GB series pump is made of brass. Application: Water Seawater Weak acids Various chemicals Coal tarAdditional information on the use of KOSHIN GEARPUMP Model: GB-25-BAA:-scrap1. during transmission the pressure loss is about 1 m head for 5 m pipe length;2. for liquids with high viscosity (more than 1000 centistokes) a minimum length of suction lines should be used.3. use the low speed (less than 400 RPM) the suction line should be 2-3 times wider than the pump inlet.Technical information:MODELGB-25Gearbox material Brass Connection25 mm (1″)Capacity (400 rpm)55L/min (14USG/min)Delivery pressure 0-0.3 MPa (0-3 kg/cm2)Max. Suction heightMax. 4 m (13.1 ft)Power750 WPulley8″ (200 mm) × A1Weight, net 11 kg (1 appliance)Weight, gross22.5 kg (2 pieces)Dimensions L×W×H (mm)402 × 267 × 250Packing unit2
