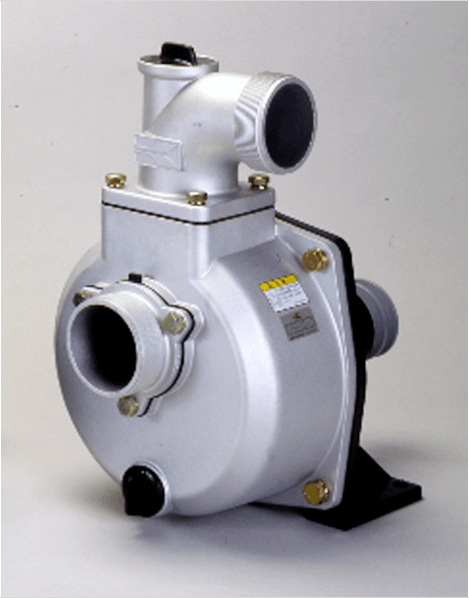

“Pabool” thermoplastic pump SU-80L

Pabool pump H series Thermoplastic pump SU-80L-BAD KOSHIN is the largest KOSHIN pump in the H and L series. This pump set is supplied without a main motor. With the Pabool pump, you can easily put together your own economical and reliable high-performance pump set for many applications. You can use any suitable drive motor (electric, gas, petrol or diesel) with 7.5-10 hp or PTO from a large motor. Drive to the pump shaft is by means of 2 belts 3″ x B2 and drive pulley diameter 78 mm. Features: Designed for sprinkler systems, general irrigation and high pressure cleaning. Pump casing is made of cast aluminum alloy. The impeller and volute casing are made of abrasion-resistant cast iron. The H and L series are available in 4 sizes for different applications: 25 mm (1″), 40 mm (1.1/2″), 50 mm (2″) and 80 mm (3″). Do not use hot water above 70 degrees C.Applications: Rice field irrigation Irrigation systems Water supply or drainage of fish farms Cattle barn washing Truck with pressure cleaning Water supply of a water reservoir Washing agricultural equipment Washing tractors with high pressureThe diagram below will help you visualize the power losses as a function of head and vice versa:Documentation:-Catalog SU-80LTechnical information:MODELSU-80LConnection diameter80 mm (3”)Connection threadOuter pipe thread BSPRevolution3600 rpm │ 4000 rpmTotal head30 m (98 feet) │ 38 m (124 feet)Max. Suction height8 mDelivery volume900 l/min (237 USG/min) │ 1000 l/min (264 USG/min)Output5.5 kW (7.5 hp) │ 7.5 kW (10 hp)Standard accessories 1 strainer, 2 coupling sets, 3 hose straps Net weight19.5 kg (19.5 lbs)Gross weight20.5 kg (45.1 lbs)Dimensions L×W×H (mm)414 × 277 × 305Packaging unit1
