SEV-80D 3″ (80 mm) clear water pump

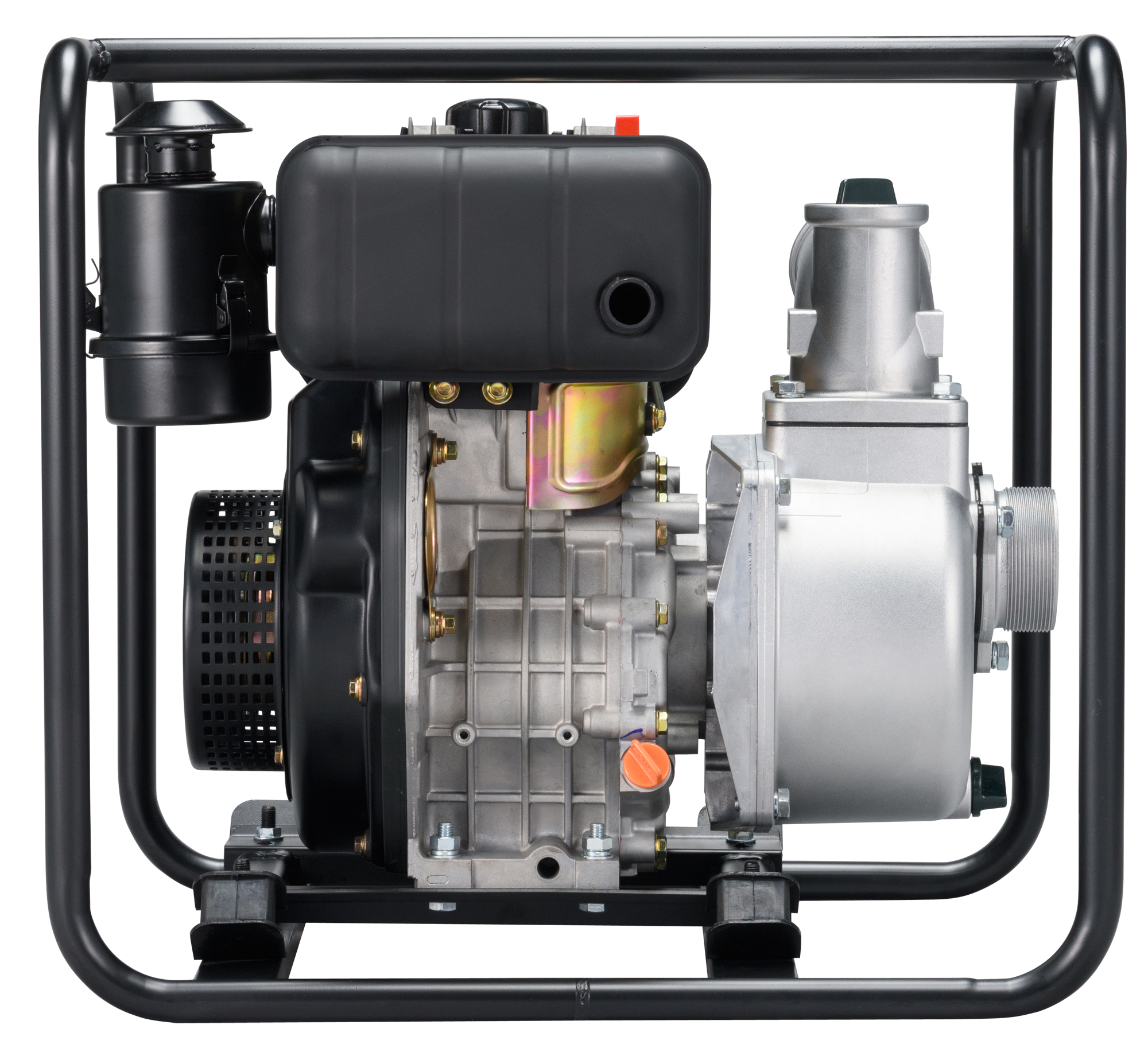

Characteristic: NEW KOSHIN DIESEL ENGINE KD300 Guaranteed 8M suction power For ships and marinas. Diesel fuel enables the use of a single fuel on board a ship. Diesel fuel is highly flammable. The pump was specially developed for use on ships. Suitable for mining, shipbuilding, firefighting and construction sites The SEV-80D clear water pump is a high-quality pump manufactured in Japan. With the new Koshin KD300 diesel engine, it offers a guaranteed suction power of 8 meters. This pump is perfect for mining, shipbuilding, firefighting and construction sites. With a connection diameter of 80 mm (3″) and a BSP external pipe thread, it is easy to install. The total delivery height is an impressive 25 meters (82 feet) and the discharge volume is 880 liters per minute (232 US gallons per minute). This pump is powerful and reliable, ideal for demanding tasks in various industries. Invest in the SEV-80D clear water pump and overcome any challenge with ease.Delivery: This product can be delivered 2 weeks after paymentThe diagram below helps you to visualize the power losses as a function of the delivery head and vice versa:Documentation:-Customer catalog SEV-80DMODELSEV-80DIntake connection80mm (3″) Connection diameter Pressure 80mm (3″) Connection thread Outer pipe thread BSP Total head25m (82 ft)Delivery rate880L/min (232USG/min)Max. Suction height8m (26 ft) Motor typeForced air-cooled 4-stroke diesel engine MotorKOSHIN KD300Displacement 296cm3 Rated power4.0kW (5.4 hp) / 3600 rpm Max. Power4,4kW (6,0 PS) / 3600rpm FuelDiesel fuel Capacity of the fuel tankTank size: 3.5L(0.92USG), fill level: 3L(0.79USG) Engine oilCC or CD, winter: 5W-30, other season: 10W-30 Engine oil capacity1.1L(0.29 USG)Continuous operating timeapprox. 2.2 hrs. Start method Recoil starter Consistency of the liquidsClear water Temperature of the liquids 5-45° C (41-113 ° F) Standard accessories 1 mud flap, 2 coupling sets, 3 hose straps, 1 motor tool Net weight48.6kg (107.1lbs) Gross weight 53.8kg (118.6lbs) Product dimensions L x W x H 600x520x550mm (24 “x 21 “x 22”) Packaging dimensions L x W x H 633x553x580mm (25 “x 22′”x 23”)
