Wideband Cat 6 RJ45 Modular Data Mech Unshielded 568A/B (Pack of 20)

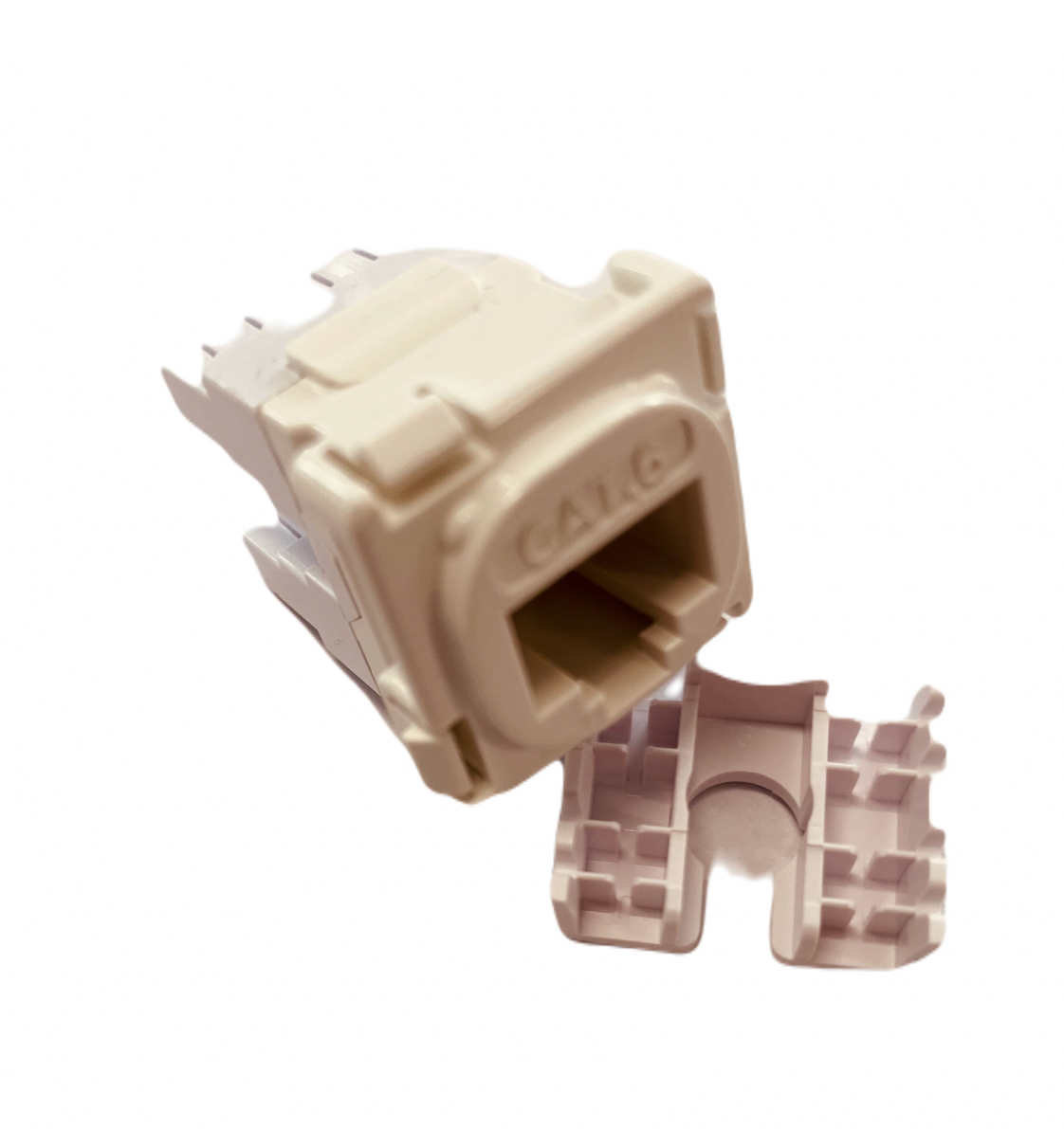

Australian Style Cat6 RJ45 Data Mech – Universal Termination (110/Krone Tool): 20 PackOur Cat6 Australian Style Jacks are designed to fit most standard Australian Standard Wall Plates, and are colour coded for both 568A and 568B standards. They can be terminated using a 110 or Krone Tool.  These Cat6 22-26 AWG solid conductor jacks are designed for use with UTP network cable and are ideal for a broad range of Ethernet, Fast Ethernet Gigabit Ethernet network and IT applications. Clear wire retaining caps are supplied and can be used to provide additional cable strain relief.   The outlets feature PCB technology which maintains low insertion loss, return loss and cross talk. FEATURESPack of 20 which includes 20 jacks and 20 clear retaining caps.These CAT 6 Keystone Jacks designed to fit most standard Australian Standard Wall PlatesCat6 keystone jacks can be terminated with both a Krone Tool and 110 Punch Down ToolsCombined with both T568A & T568B colour codingNo bezzle requiredTermination Retaining Cap keep the wires locked in placeDesigned for 22-26 AWG Solid ConductorsTested to AS/CA S008:2010 A1:2014 ConstructionMaterial: 50 micron gold plate contactsColour: White face SpecificationsDimensions35mm Height x 85mm Outer DiameterDimensions23mm (W) x 23mm (H) x 55mm (D)Current Rating1.5A maximumInsulation Diameter (Wire)0.70 – 1.60mmTemperature Range-40°C to 70°CDurability750 insertion cycles minimumStandardsColour Coded to T568A and T568B standards. Tested to AS/CA S008:2010 A1:2014
